FEATURES: Chassis: 0.08 (2mm) thick composite with snap lock battery hold
downs and scaleable battery components to fit a variety of stick
or side-by-side packs
Drive: Four wheel shaft drive with Revo spec sealed large diameter
outer and center drive shafts
Motors: 16.8 volt Titan 550 size fan cooled dual brushed motors
Radio: 2-ch Traxxas TQ 2.4GHz Direct Sequence Spread Spectrum (DSSS)
programmable system with Traxxas Link automatic model recognition
that allows up to 20 Traxxas Link receivers and transmitters to be
bound transmitter automatically recalls settings for any
previously bound receiver 5-channel micro receiver waterproof
high-torque steering servos and sealed receiver box for running in
wet conditions
running in wet conditions
Electronic Speed Control: Traxxas EVX-2 forward and reverse ESC with
three programmable driver profiles and training mode
Batteries: Two Traxxas Power Cell NiMH 7-cell flat packs with Traxxas
High Current connectors 16.8V total power
Ball Bearings: Full set rubber sealed
Shocks: Eight oil-filled composite bodied with red springs rubber
pressure bladders and double O-ring seals
Gearbox: Sealed
Differentials: Revo spec with X-ring seals to keep oil in and dirt
out bevel gear design
Slipper Clutch: Traxxas s patent pending Torque-Control slipper
clutch
Transmission: Single-speed (two speed optional)
Tires: Treaded soft compound Maxx 5.9 (149mm) outer diameter 3.25
(82mm) width
Wheels: 3.8 (96mm) diameter chrome 10 spoke (spokes are in groups
of two) 2.7 (70mm) width 14mm hex
Bumpers: Plastic front and rear with kickups
Suspension: Adjustable Revo Spec sealed pivot balls
Caster: Adjustable caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Adjustable camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Steering: Heavy duty dual servo bell-crank type with ball bearings

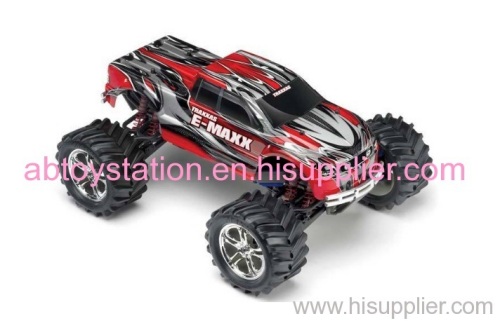

INCLUDES: 16.8V Traxxas E-Maxx Monster Truck oil-filled shocks two motors
electronic speed control painted body tires foam inserts
2.4GHz 2-ch radio two steering servos wheels instructions
decals tools two 7-cell batteries and foam battery spacers


REQUIRES: Radio Batteries: Eight AA
Charger: NiMH capable (high-current connector adapter (DTXC2222) is
required if using Duratrax Onyx charger listed in Accessory
Completion Guide
Misc. Items: Building and track equipment


SPECS: VEHICLE-
Length: 20.4 (518mm)
Width: 16.5 (419mm)
Height: 9.8 (248mm)
Weight: 7.2 lbs (3290g) approx. without batteries
Wheelbase: 13.2 (335mm)
Front Tread: 12.9 (329mm)
Rear Tread: 13.0 (331mm) side-to-side at wheel centers
Front Track: 16.4 (417mm)
Rear Track: 16.5 (419mm) side to side at outer edges of wheels
Ground Clearance: 2.6 (65mm)
BODY-
Length: 19.4 (493mm)
Width: 6.9 (175mm) at rear wheels (widest point)
6.4 (164mm) behind from wheels (thinnest point)
Height: 5.3 (135mm)
